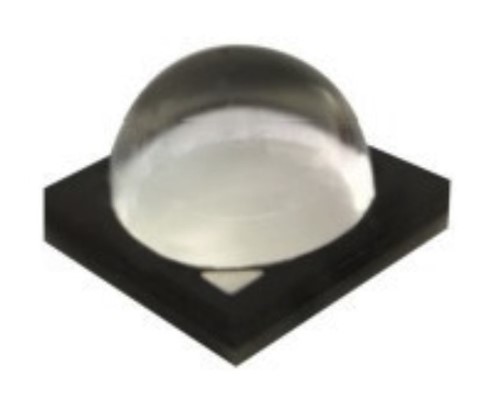

UVA 7070 10W
FEATURES
- High Power UV LED
- Quartz glass lens
- Max. current = 2000mA
- Package Dimension = 7.0mm X 7.0mm X 4.5mm
- Ceramic subtract
- Low thermal resistance
- View angle = 60 degree
|
Quelighting
Part number |
Dimension (mm) |
Radiant Power (mW) | View angle | Wd(nm) | Drive current (mA) | Vf typ (V) | Max. Curent(mA) |
| QLUV10M20GCW | 7.0x7.0x4.5 | 3000 | 60 | 365 | 1000 | 8.4 | 2000 |
| QLUV10L20GCW | 7.0x7.0x4.5 | 3100 | 60 | 385 | 1000 | 7.6 | 3000 |
| QLUV10K20GCW | 7.0x7.0x4.5 | 3300 | 60 | 395 | 1000 | 7.6 | 3000 |
| QLUV10J20GCW | 7.0x7.0x4.5 | 3300 | 60 | 405 | 1000 | 7.6 | 3000 |
