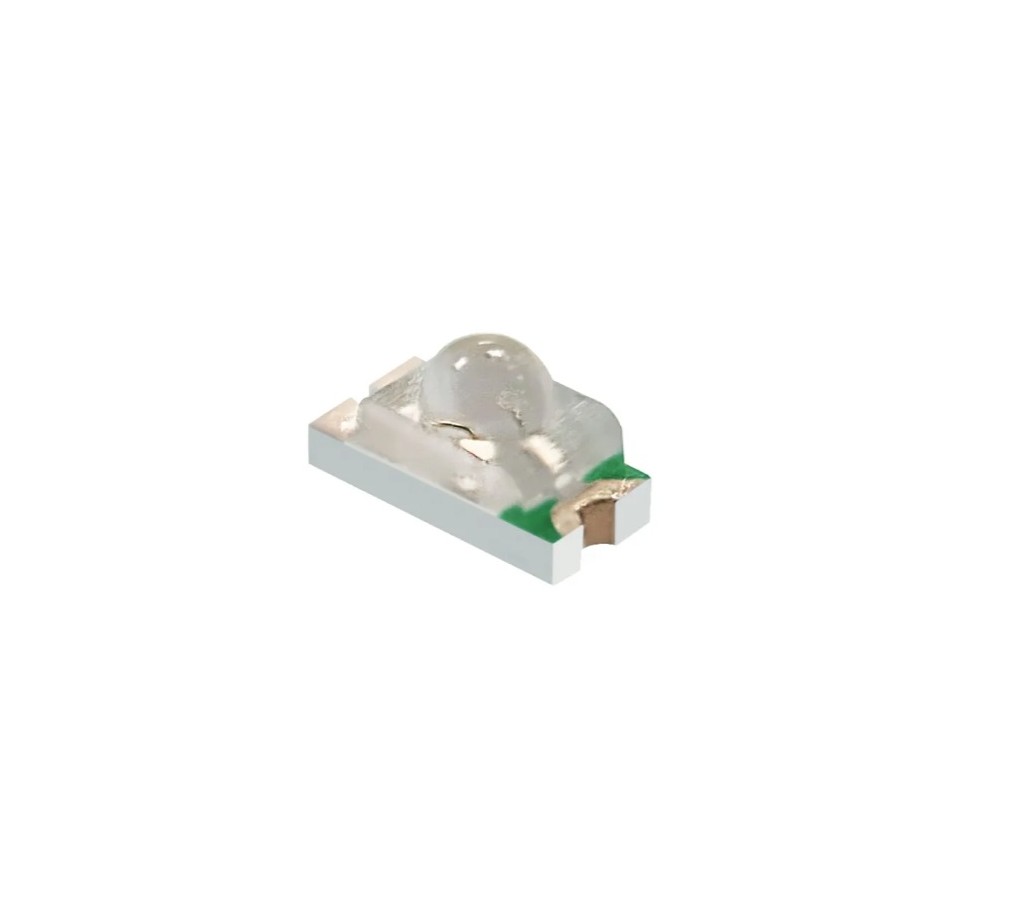

0603 35D LED
QLSP13095 series 35°
APPLICATION
This is the much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.
FEATURES
- Compatible with automatic placement equipment.
- Color: Blue
- RoHS compliant
- Compatible with infrared and vapor phase reflow solder process.
- Custom Bin available upon special request
- View angel typ. 35°
- 0.95mm Height
| Part No. | Power (Watt) |
Brightness ( mcd ) |
View angle |
Color | Wavelength Wd(nm) |
Max. Current (mA) |
Drive current (mA) |
Vf typ (V) |
|---|---|---|---|---|---|---|---|---|
| QLSP13095BH | 0.06W | 200~600 | 35 | Blue | 464~472 | 25 | 20 | 3 |
| QLSP13095UOH | 0.04W | 500~800 | 35 | Orange | 600~606 | 25 | 20 | 2 |
| QLSP13095RH | 0.04W | 200~400 | 35 | Red | 620~625 | 25 | 20 | 2 |
| QLSP13095YH | 0.04W | 600~1000 | 35 | Yellow | 586~592 | 25 | 20 | 3 |
| QLSP13095GH | 0.06W | 2000~3000 | 35 | Green | 518~524 | 25 | 20 | 3 |
| QLSP13095YGH | 0.04W | 100~250 | 35 | Yellow Green | 566~572 | 25 | 20 | 2 |
